Multifunction Grain Color Sorter Machine from Hawit Brand

Grain Color Sorter Machine

Multifunction Grain Color Sorter Machine from Hawit Brand

Hawit  ST model Multifunction Color Sorter Machine Can Be Worked to Sort All Kinds of Different Grain such as Pulese Sorting , Dals Sorting, Seeds Sorting , Beans Sorting , Peanut Sorting etc;

The Capacity of  our ST Model can  Reach Around 1-14 Tons/h (According to Comtaminate 3%-5%) with The Model Available from 1 Chute to 16 Chutes ;

The Ejector of  ST Model Can Use Hawit Brand , SMC Brand (from Japan), or Martrix Brand (from Etaly) , Which Meets  Different Customer Market Requirment .

The Len of Camera is From Toshiba , Japan , The Camera Pixels 5400 .

The Main Available Feature of  ST model :

15 Inch Display;

Mobile Operation Function;

Photo Capture Function;

Shape Sorting Available;

Remote Opertation from Manufacture in China .

Reverse Sorting Available ;

Glass Distance Design upto 350 mm

A: Machine Feature:



1..Photo Capture Function; China Manufacture Remote Operation; 15 Inch Display;

    Low Temprature; RGB Spectrum Technology; Mobile Operation; Glass Distance Upto 350 mm ; Glass Sorting Technology ; Shape Sorting Technology;

2.Ultra Clear Image, Minimum recognition accuracy 0.07 mm, making tiny defect be invisible.

3.Smoothly dust cleaning, strongly dust absorption, fully coverage, none dead angle, easy to handle with high dust environment.

4.Carry out color sorting+shape sorting at the same time , reduce the breakage rate and effectively improve the purity of the finished product,and adapt to the color sorting of multiple varieties of tea. High-     end spray valve design,long lifepan,the air consumption is small, and it is durable.

5:New Generation of ARM+FPGA Processor Technology, Arithmetic Speed will be much faster.

6: RGB full color tri-chromatic CCD image acquisition system.

   High camera resolution 5400 pixel identifying tiny defects up to 0.01mm2



B: Techncial Specification:



Technical Parameter
Model No HWT-GZ4 HWT-GZ5 HWT-GZ6 HWT-GZ7 HWT-GZ8 HWT-GZ10
Machine weight (Kgs) 1150 1300 1500 1700 1950 2250
Channels No 252 315 378 441 504 630
Light source LED LED LED LED LED LED
Pixel of camera 5400 5400 5400 5400 5400 5400
Camera Scanning Speed 16000 16000 16000 16000 16000 16000
Ejector Hawit Brand (Optional);                    SMC Brand  (Optional) Hawit Brand (Optional);                    SMC Brand  (Optional) Hawit Brand (Optional);                    SMC Brand  (Optional) Hawit Brand (Optional);                    SMC Brand  (Optional) Hawit Brand (Optional);                    SMC Brand  (Optional) Hawit Brand (Optional);                    SMC Brand  (Optional)
Capacity (Tons/h) 2--3  2--3 3--4 4--5 5--6 7--8
Color sorting accuracy 99,9%  99,9% 99,9% 99,9% 99,9% 99,9%
Resolutions (mm) 0,08 0,08 0,08 0,08 0,08 0,08
Power (KW) 3.6  4.1  4.7  4.7  5.0  5.4
Power supply (Voltage/HZ) 220/50 (110/60) 220/50(110/60) 220/50(110/60) 220/50(110/60) 220/50(110/60) 220/50(110/60)
Warrantly One Year One Year One Year One Year One Year One Year
Machine Delivery Time 25-30 days after Advance Payment 25-30 days after advance 20-25 days after advance payments 20-25 days after advance payments 20-25 days after advance payments 20-25 days after advance payments
Air Comsuption (L/min) 1300~2100 1300-2100 2000~3500 2500~4300 3000~4500 5000~6500
Compressor Capacity (Kw) 15 15 22 30 30 37
Machine Dimention(mm) 1912*1574*2090 2226*1574*2090 2540*1574*2090 2854*1574*2090 3168*1574*2090 3796*1574*2090
Wooden case Packing Dimention (mm) 2232*1764*2341 2546*1764*2341 2860*1764*2341 3174*1764*2341 3488*1764*2341 4300*1764*2341

Components Suppliers

Camera

  Toshiba Full Color Camera CCD with 5400 pixel

Lens

  Phoenix customized industrial lens

Chip

  Intel and ATI brand DSP,FPGA

Power supply

  Mean Well

Power switch

  Schneider

Filter

  SMC



CCD camera

The high-end 5400 pixel CCD camera can distinguish the infinitely small spot, and improve the sorting level to a higher level

Optical System

Scientific and reasonable optical design, clearer and wider resolution range

Heat System

Reasonable heat output device ensures that all parts work at room temperature with better signal-to-noise ratio, which not only improves the sorting accuracy, but also extends the service life of the machine.

Image System

More intelligent software can easily identify all kinds of heterochromatic heterogeneous materials and improve the accuracy of selection.

Human-machine operation

humanized true color screen, the visual effect is clearer, the operation is easier

Ejector

professional high-frequency ejector, save more air, faster reaction speed, higher accuracy, longer life, with intelligent software, to ensure good nesting rate and excellent precision







C: Machine Parts and sorting performanace :

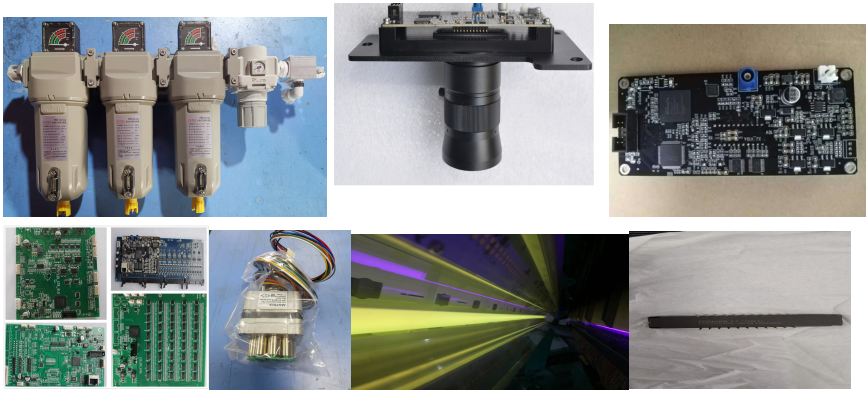

parts

sorting

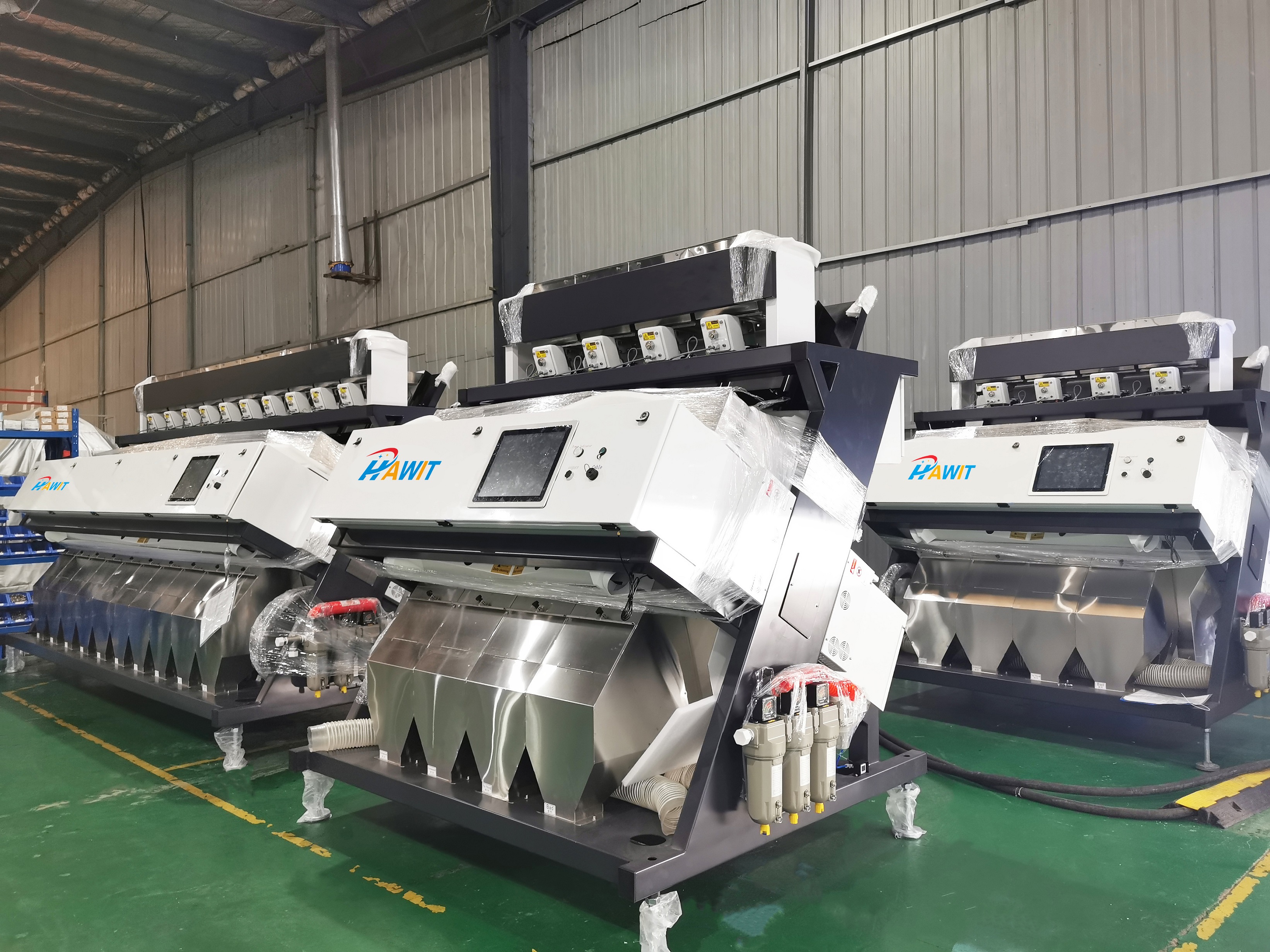

D Machine Ready for Dispatch



Advanced Technology Grain Color Sorter Machine





FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock
Q: Is engineer oversea service available?
A:Yes, Professional after-sales engineer is available to end-user's site for training & machine installation .
Q: Can we send samples for test?
Sample material for testing use is welcome. a working video will be offered for sorting result inspection.
