G Model Rice Color Sorter with 4 Chutes Machine

Hawit four chutes color sorter

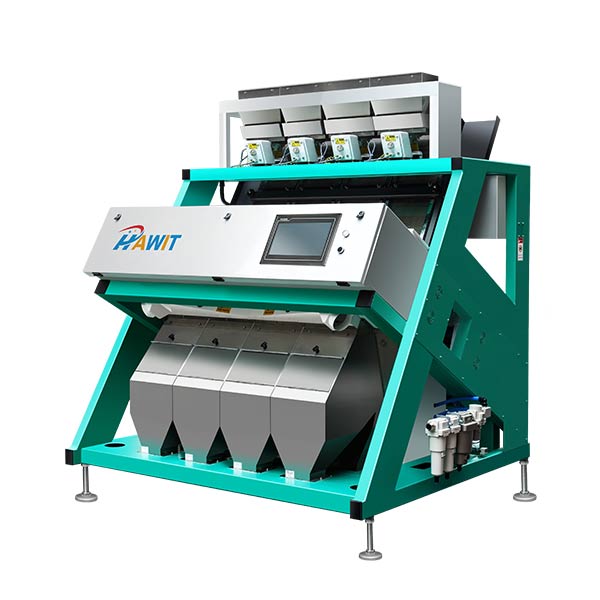

G Model Rice Color Sorter with 4 Chutes Machine

Hawit Four Chute Rice Color Sorter Machine Can Be Used to Sort All Kinds of Different Rice , Such as Basmati , Parboiled Rice, Raw Rice etc;

The Capacity of This Machine Can Be Reached Around 2-2.5 Tons/h (according to comtaminate 5%) ;

The Ejector of This Model Can Use Hawit Brand , SMC Brand (from Japan), or Martrix Brand (from Etaly) ;

The Len of Camera is From Toshiba , Japan , The Camera Pixels 5400 .

The Main Available Feature of This Model :

Photo Capture;

Capacity Caculation On Line ;

Mobile Operation;

High Sorting Resolution With Best Rejection;

1.Technical Feature:



*One Key Operation System

The user can set the color, shape, size and defect area of the material, and confirm the unqualified material, so that the

machine can automatically set the sorting scheme of the material according to the principle of independent calculation,

intelligent identification and intelligent sorting



*LED Light Control System

With advanced digital stepless automatic dimming technology, LED brightness can be automatically adjusted according to

material sorting requirements and environmental changes. The best sorting performance will be obtained. The latest

technology of LED system can satisfy the requirements of thousands of color recognition, separation and classification.



*Remote Control System

Hawit cloud service technology platform can provide real-time online tracking service monitoring and data collection for

machine operation. It can realize remote control, operation, maintenance and software upgrade, and can detect and solve

LED lamp, electronic, mechanical and adjustment problems



*Self-Checking System

Self-test system automatically checks the working status of the camera, control panel and background board, saving you

the time to check all parts before each operation



*5400 Pixels

HD industry use CCD camera brings the sorting accuracy to 0.04mm²,easy to separate black spot and light

yellow.



*New Generation of ARM+FPGA Processor Technology extremely increases the sorting capacity to ensure your high

producing ability.



*Latest Ejector Technology makes the ejectors longer life time, lower air consumption, faster speed, easier maintenance

and high sorting accuracy.



*Special Feeding System Design makes each chutes separated and allows you to combine the chutes due to sorting

requirements, decreases the rejection ratio and air consumption.



2. Technical Specification

Technical Parameter
Model No HWT-GR4
Machine weight (Kgs) 1150
Channels No 252
Light source LED
Pixel of camera 5400
Camera Scanning Speed 16000
Ejector Hawit Brand (Optional);                    SMC Brand  (Optional)
Capacity (Tons/h) 2--2.5
Color sorting accuracy 99,9%
Resolutions (mm) 0,08
Power (KW) 3.6
Power supply (Voltage/HZ) 220/50 (110/60)
Warrantly One Year
Machine Delivery Time 25-30 days after Advance Payment
Air Comsuption (L/min) 1300~2100
Compressor Capacity (Kw) 15
Machine Dimention(mm) 1912*1574*2090
Wooden case Packing Dimention (mm) 2232*1764*2341


Components Suppliers

Camera

  Toshiba Full Color Camera CCD with 5400 pixel

Lens

  Phoenix customized industrial lens

Chip

  Intel and ATI brand DSP,FPGA

Power supply

  Mean Well

Power switch

  Schneider

Filter

  SMC

CCD camera

The high-end 5400 pixel CCD camera can distinguish the infinitely small spot, and improve the sorting level to a higher level

Optical System

Scientific and reasonable optical design, clearer and wider resolution range

Heat System

Reasonable heat output device ensures that all parts work at room temperature with better signal-to-noise ratio, which not only improves the sorting accuracy, but also extends the service life of the machine.

Image System

More intelligent software can easily identify all kinds of heterochromatic heterogeneous materials and improve the accuracy of selection.

Human-machine operation

humanized true color screen, the visual effect is clearer, the operation is easier

Ejector

professional high-frequency ejector, save more air, faster reaction speed, higher accuracy, longer life, with intelligent software, to ensure good nesting rate and excellent precision



3. After Sales Services:

At site service from local distributor ;

Free software upgrade services ;

One year warranty and free maintenance;

Chinese Engineers available to service machinery overseas.

24 Hours on line Guide from manufacture



4. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory;
Q: Do you have R&D department?
A: Yes, we have our R&D team, which has more than 15 years in sortex software design .
Q: Is engineer oversea service available?
A:Yes, Professional after-sales engineer is available to end-user's site for training & machine installation .
Q: Can we send product samples for test?
A:Sample material for testing use is welcome. a working video will be offered for sorting result inspection.

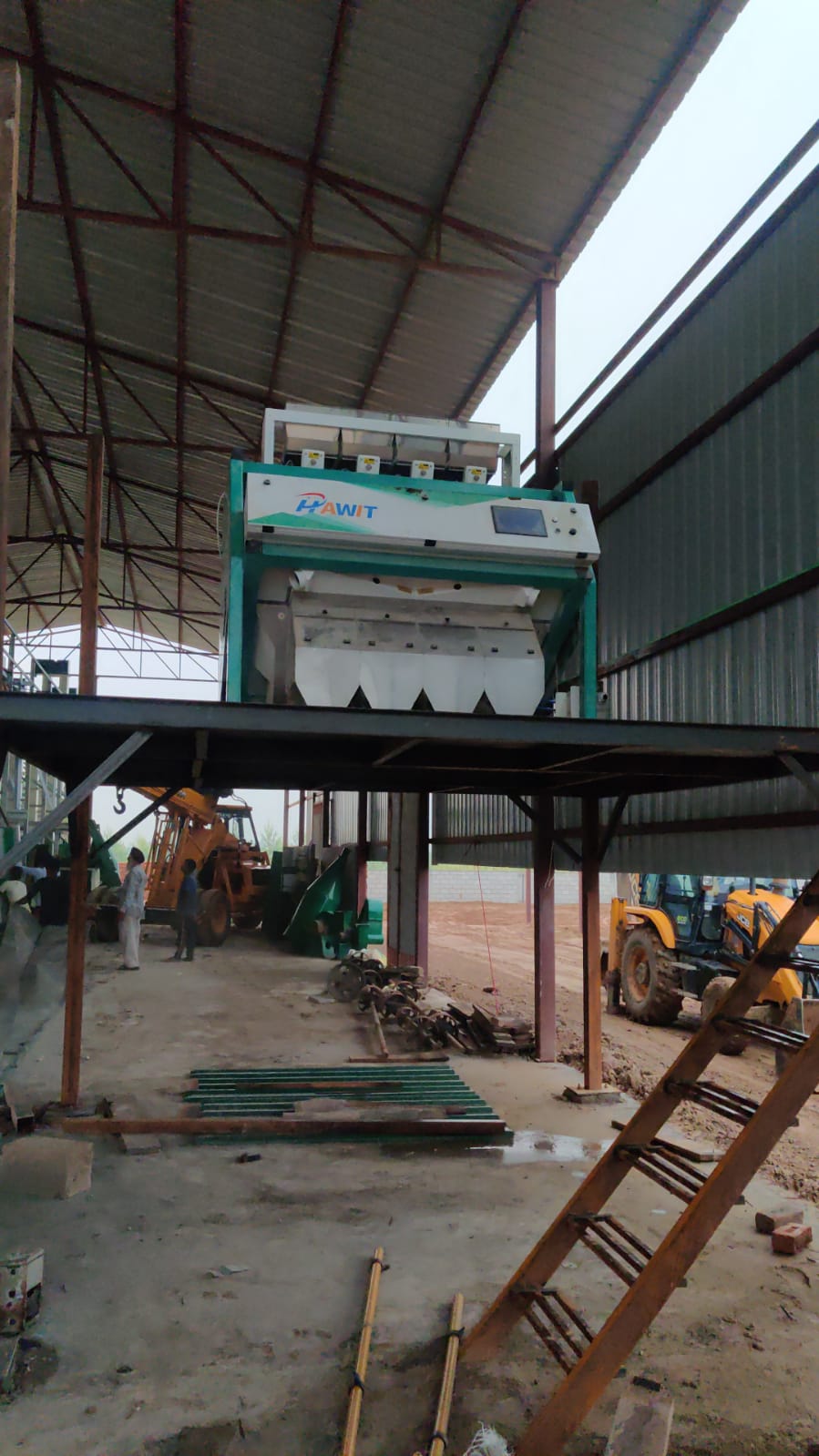

 5. Machine Installation at Rice Mill

:Rice sorter machine installation
