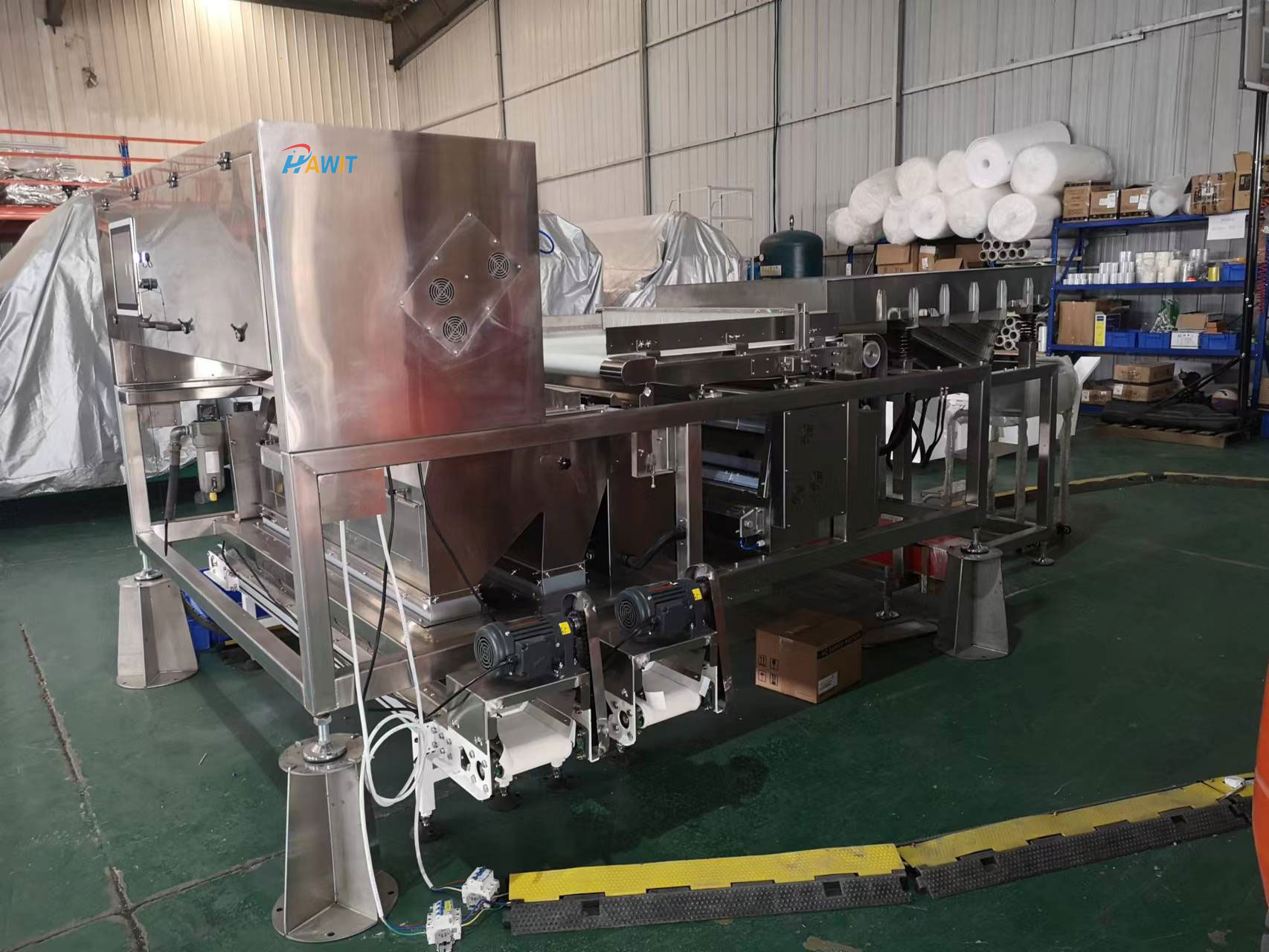

Hawit Stone & Glass Big Size Material Color Sorter

Key Features at a Glance

• High sorting accuracy for demanding applications

• Glass distance up to 350 mm for large particle throughput

• Special feeding system engineered for heavy, irregular materials

• Purpose-designed for big size product sorting

A. Technical Features

1. Special Feeding System Design
   Engineered for large, irregularly shaped materials. Each chute operates independently and can be flexibly combined according to sorting requirements, effectively reducing the rejection ratio and air consumption.

2. LED Light Control System
   Advanced digital stepless automatic dimming technology adjusts LED brightness according to material sorting requirements and environmental changes. The system supports thousands of color recognition, separation, and classification scenarios.

3. One-Key Intelligent Operation System
   Operators define the material's color, shape, size, and defect area. The machine then autonomously calculates, intelligently identifies, and automatically sets the optimal sorting scheme.

4. Self-Checking System
   The self-test system automatically checks the working status of cameras, control panels, and background boards before each operation, saving time on manual pre‑checks.

5. 5400-Pixel High-Resolution Camera
   The industrial-grade HD CCD camera achieves sorting accuracy down to 0.04 mm², easily separating discolored materials and foreign objects even in large-size applications.

6. New-Generation ARM+FPGA Processor
   Extremely increases sorting capacity to support high‑volume production of big size materials.

7. Latest Ejector Technology
   Specially designed ejectors deliver longer lifespan, lower air consumption, faster response, easier maintenance, and high sorting accuracy — even when handling heavy, dense particles.

B. Technical Specification :

C. Core Components & System Highlights

Key Component Suppliers

CCD Camera System
The high-end 5400-pixel CCD camera can distinguish even the tiniest spots and color variations, raising sorting accuracy to a higher level — even with large, irregular materials.

Optical System
Scientifically optimized optical design provides a clearer image and a wider resolution range across the full width of the horizontal sorting path.

Heat Dissipation System
An efficient cooling design keeps all components working at room temperature with an improved signal‑to‑noise ratio, enhancing sorting accuracy and extending the machine's service life.

Image Processing System
Intelligent software easily identifies all kinds of off‑color and irregular materials, further improving selection accuracy in demanding industrial environments.

Human-Machine Interface
User‑friendly true‑color touchscreen delivers sharper visuals and easier operation.

Ejector
Specially designed high‑frequency ejectors handle heavy materials with precision — saving air, reacting faster, offering higher accuracy, and lasting longer. Combined with intelligent software, they ensure an excellent rejection ratio and outstanding precision.

D. Sorting Video：
