Hawit Brand Belt Color Sorter Machine is Designed to Sort All Kinds of Different Products , Such as for Cashew Sorting , Peanut Sorting, Plastic Sorting etc;
The Capacity of This Model can Get Around 1-5 Tons/h (According to Comtaminate 3%-5%) with Available Models from 300 mm Belt to 1200 mm Belt Design.
The Single and Double Layer Both Available in Hawit Brand Belt Machine ;
The Ejector of This Model Can Use Hawit Brand , SMC Brand (from Japan), or Martrix Brand (from Etaly) , Which Meets Different Customer Market Requirment .
The Len of Camera is From Toshiba , Japan , The Camera Pixels 5400 .
The Main Available Feature of This Model :
Photo Capture Functions:
Shape Sorting Available;
RGB Technology Sorting ;
More Software Design for Different Products ;
Product Low Broken Rate
A Machine Feature:
1. International high-end full-color line scan technology, DSP + FPGA processing the international forefront of technology, combining a variety of colors and shapes model complex algorithms, to provide "color selection + shape selected" function for different materials, a variety of modes set free.
2. High quality ejector with 5-10 billion ejections life low air consumption
3. Most unique intelligent LED with cold shadowless light source and super long life span, high lighting efficiency
4. Accurate dust collecting position design to secure sorting room spotlessly clean keeping high identification
5. Strong industry-grade digitization processor, image acquisition and processing in high speed, consistency of signal path and signal reliability is secured
6. Excellent combination of mechanical structure and tri-chromatic control system, guarantee 99.999% accuracy and amazing 50:1 rejection rate.
7. RGB full color tri-chromatic CCD image acquisition system. High camera resolution 5400 pixel identifying tiny defects up to 0.01mm2
8.Photo Capture Function;Low Temprature; RGB Spectrum Technology; Shape Sorting Technology;
B Technical Specifiction:
Technical Parameter | |||||||
Feature | Model | Voltage (kw) | Power supply voltage V | Pressure MPa | Air Comsuption m3/min | Dimention(L*W*Hmm) | Weight kg |
300 Single Layer | 6SXL-300M | 3 | Vibrator 380V/ Main machine 220V | 0.5~0.8 | <1.5 | 2890*1350*1735 | 860 |
600 Single Layer | 6SXL-600M | 4 | Vibrator 380V/ Main machine 220V | 0.5~0.8 | <2.0 | 3895*1650*1735 | 1020 |
1200 Single Layer | 6SXL-1200M | 5.5 | Vibrator 380V/ Main machine 220V | 0.5~0.8 | <3.0 | 3895*2250*1735 | 1340 |
600 Double Layer | 6SXL-600MS | 7 | Vibrator 380V/ Main machine 220V | 0.5~0.8 | <4.0 | 4246*2160*2709 | 2220 |
1200 Double Layer | 6SXL-1200MS | 10.5 | Vibrator 380V/ Main machine 220V | 0.5~0.8 | <6.0 | 4246*2760*2709 | 2880 |

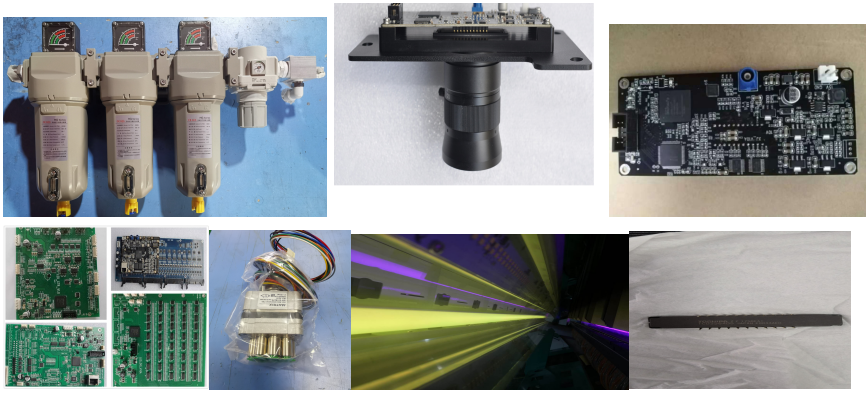

Components Suppliers |
|
Camera |
Toshiba Full Color Camera CCD with 5400 pixel |
Lens |
Phoenix customized industrial lens |
Chip |
Intel and ATI brand DSP,FPGA |
Power supply |
Mean Well |
Power switch |
Schneider |
Filter |
SMC |
CCD camera |
The high-end 5400 pixel CCD camera can distinguish the infinitely small spot, and improve the sorting level to a higher level |
Optical System |
Scientific and reasonable optical design, clearer and wider resolution range |
Heat System |
Reasonable heat output device ensures that all parts work at room temperature with better signal-to-noise ratio, which not only improves the sorting accuracy, but also extends the service life of the machine. |
Image System |
More intelligent software can easily identify all kinds of heterochromatic heterogeneous materials and improve the accuracy of selection. |
Human-machine operation |
humanized true color screen, the visual effect is clearer, the operation is easier |
Ejector |
professional high-frequency ejector, save more air, faster reaction speed, higher accuracy, longer life, with intelligent software, to ensure good nesting rate and excellent precision |
C Machine Parts and Performanace
