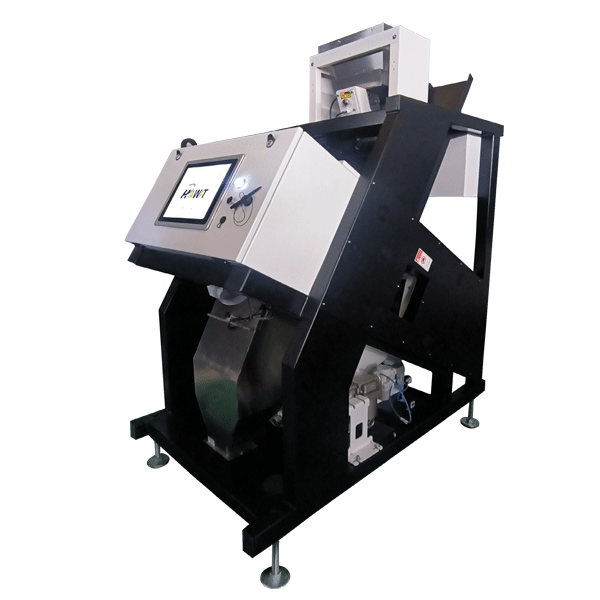

Hawit Infrared Camera Color Sorter

A. Technical Features

1. Remote Control System
   The Hawit cloud service platform provides real-time online tracking, service monitoring, and data collection. It enables remote control, operation, maintenance, and software upgrades, and can diagnose and resolve issues related to LED lamps, electronics, mechanics, and adjustments.

2. One-Key Intelligent Operation System
   Users define the material's color, shape, size, and defect area. The machine then autonomously calculates, intelligently identifies, and automatically sets the optimal sorting scheme — especially powerful for infrared-based shell/kernel differentiation.

3. LED Light Control System
   Advanced digital stepless automatic dimming technology automatically adjusts LED brightness according to material sorting requirements and environmental changes, ensuring optimal performance across thousands of color recognition and classification tasks.

4. Self-Checking System
   The self-test system automatically checks the working status of cameras (both visible and infrared), control panels, and background boards before each operation, saving time on manual pre-checks.

5. 5400-Pixel High-Resolution CCD Camera
   The industrial-grade HD CCD camera achieves sorting accuracy down to 0.04 mm², easily separating black spots and light-yellow defects in the visible spectrum.

6. New-Generation ARM+FPGA Processor
   Extremely increases sorting capacity to support high-volume production requirements, processing both visible and infrared signals simultaneously.

7. Latest Ejector Technology
   Delivers longer ejector lifespan, lower air consumption, faster response, easier maintenance, and high sorting accuracy. Ejectors can be customized (Hawit, SMC, or Matrix) to meet varying distributor and end-user demands.

8. Special Feeding System Design
   Each chute operates independently and can be flexibly combined according to sorting requirements, effectively reducing the rejection ratio and air consumption.

B.Technical Specification:

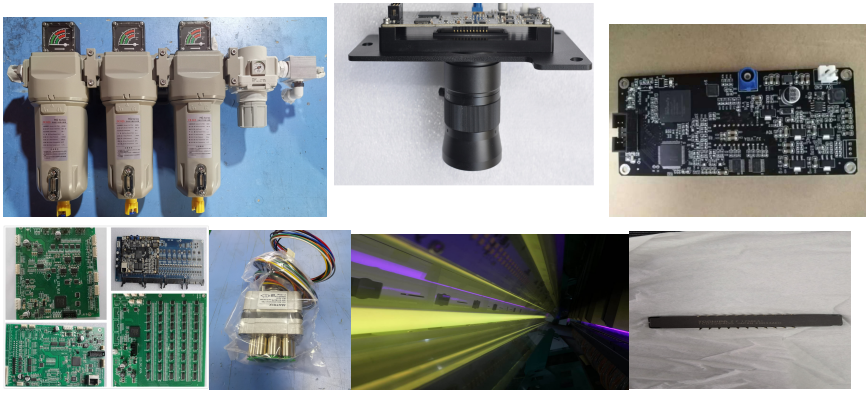

Key Component Suppliers

CCD Camera System
The high-end 5400-pixel CCD camera can distinguish even the tiniest spots, raising sorting accuracy to a higher level.

Infrared Recognition
The optional infrared cameras add a new dimension of detection, enabling shell/kernel separation, foreign material identification, and other tasks invisible to standard RGB cameras.

Optical System
Scientifically optimized optical design provides a clearer image and a wider resolution range for both visible and infrared channels.

Heat Dissipation System
An efficient cooling design keeps all components working at room temperature with an improved signal-to-noise ratio, enhancing sorting accuracy and extending the machine’s service life.

Image Processing System
Intelligent software easily identifies all kinds of off-color and irregular materials in both visible and infrared spectrums, improving selection accuracy.

Human-Machine Interface
User-friendly true-color touchscreen delivers sharper visuals and easier operation.

Ejector
Professional high-frequency ejectors save air, react faster, offer higher accuracy, and last longer. Combined with intelligent software, they ensure an excellent rejection ratio and outstanding precision.

C. Machine Performanace
