Hawit Brand Mini Color Sorter with 32 and 64 Channels Model

Hawit Brand mini sorter 64 channels
Hawit Brand mini sorter 32 channels

Hawit Brand Mini Color Sorter with 32 and 64 Channels Model

Hawit Brand Mini Color Sorter Machine Can Work in Small Capacity to Sort All Kinds of Different Pulses, such as Chael Dals , Toor Dals , Moong Beans, Sunflower Seeds, Pumpkin Seeds, Chia Seeds , Popy Seeds etc;

The Capacity of  This Model can  Reach Around 100 kg - 500 kg  (According to Comtaminate 3%-5%) with Available Models from 32 channels to 64 channels .

The Ejector of This Model Can Use Hawit Brand , SMC Brand (from Japan), or Martrix Brand (from Etaly) , Which Meets  Different Customer Market Requirment .

The Len of Camera is From Toshiba , Japan , The Camera Pixels 5400 .

The Main Available Feature of  This  Model :

Photo Capture Functions:

Shape Sorting Available;

RGB Technology Sorting ;

More Software Design for Different Products ;

Friendly Using in Touch Screen ;



Hawit Brand Mini Color Sorter with 32 and 64 Channels Model



A Machine Feature:



1. International high-end full-color line scan technology, DSP + FPGA processing the international forefront of technology, combining a variety of colors and shapes model complex algorithms, to provide    "color selection + shape selected" function for different materials, a variety of modes set free.

2. High quality ejector with 5-10 billion ejections life low air consumption
3. Most unique intelligent LED with cold shadowless light source and super long life span, high lighting efficiency
4. Accurate dust collecting position design to secure sorting room spotlessly clean keeping high identification
5. Strong industry-grade digitization processor, image acquisition and processing in high speed, consistency of signal path and signal reliability is secured
6. Excellent combination of mechanical structure and tri-chromatic control system, guarantee 99.999% accuracy and amazing 50:1 rejection rate.
7.
RGB full color tri-chromatic CCD image acquisition system.

   High camera resolution 5400 pixel identifying tiny defects up to 0.01mm2



B:Technical Specification :



Technical Parameter
Channels No 32 64
Machine weight (kgs) 265 500
Channels No   64
Light source LED LED
Pixel of camera 5400 5400
Camera Scanning Speed 16000 16000
Ejector Hawit Brand and  SMC (Optional) Hawit Brand and  SMC (Optional)
Capacity (kgs/h) 100-300 300-500
Color sorting accuracy 99,9% 99,9%
Resolutions (mm) 0,08 0,08
Power (KW) 0.8 1.0
Power supply (Voltage/HZ) 220/50(110/60) 220/50(110/60)
Warrantly One Year One Year
Machine Delivery Time 25-30 days after advance 25-30 days after advance
Machine Dimensions(m m) 1146*460*1615 1465*1110*1560

Components Suppliers

Camera

  Toshiba Full Color Camera CCD with 5400 pixel

Lens

  Phoenix customized industrial lens

Chip

  Intel and ATI brand DSP,FPGA

Power supply

  Mean Well

Power switch

  Schneider

Filter

  SMC



CCD camera

The high-end 5400 pixel CCD camera can distinguish the infinitely small spot, and improve the sorting level to a higher level

Optical System

Scientific and reasonable optical design, clearer and wider resolution range

Heat System

Reasonable heat output device ensures that all parts work at room temperature with better signal-to-noise ratio, which not only improves the sorting accuracy, but also extends the service life of the machine.

Image System

More intelligent software can easily identify all kinds of heterochromatic heterogeneous materials and improve the accuracy of selection.

Human-machine operation

humanized true color screen, the visual effect is clearer, the operation is easier

Ejector

professional high-frequency ejector, save more air, faster reaction speed, higher accuracy, longer life, with intelligent software, to ensure good nesting rate and excellent precision

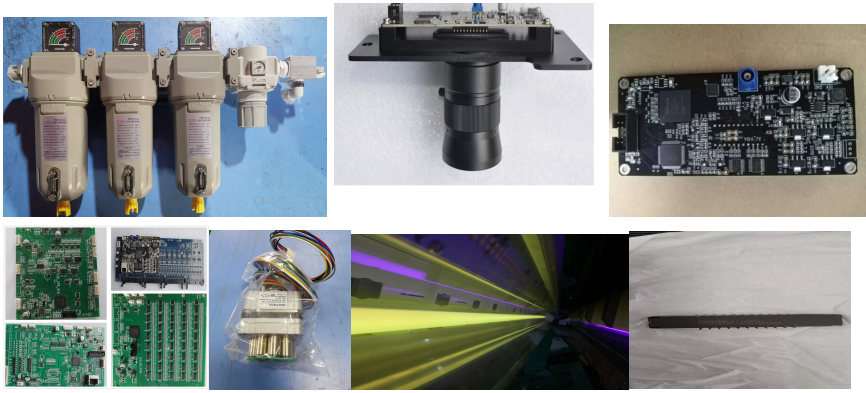

C Machine Parts Details and Photo :

Parts

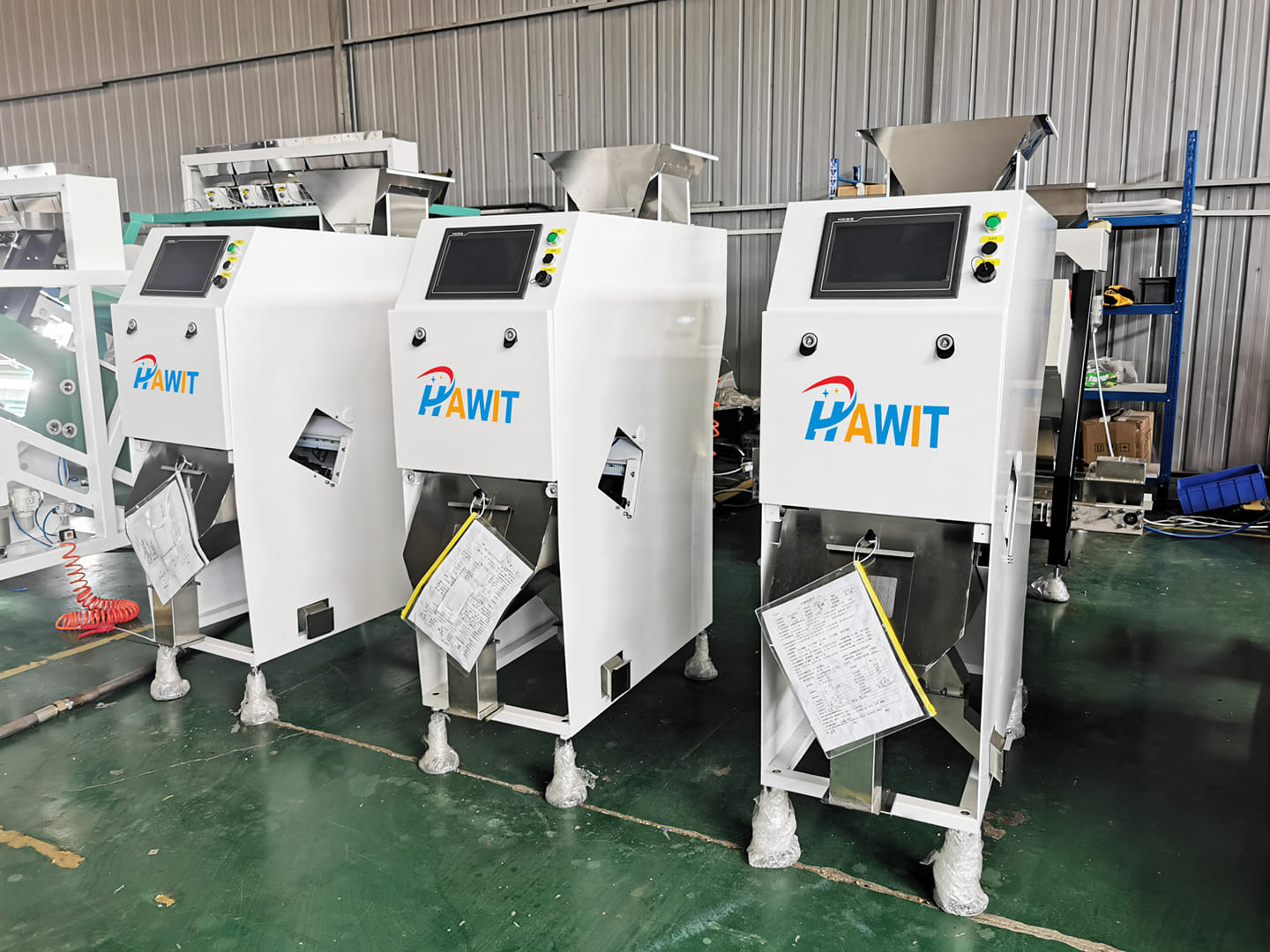

D Machine being Dispatch

Machine

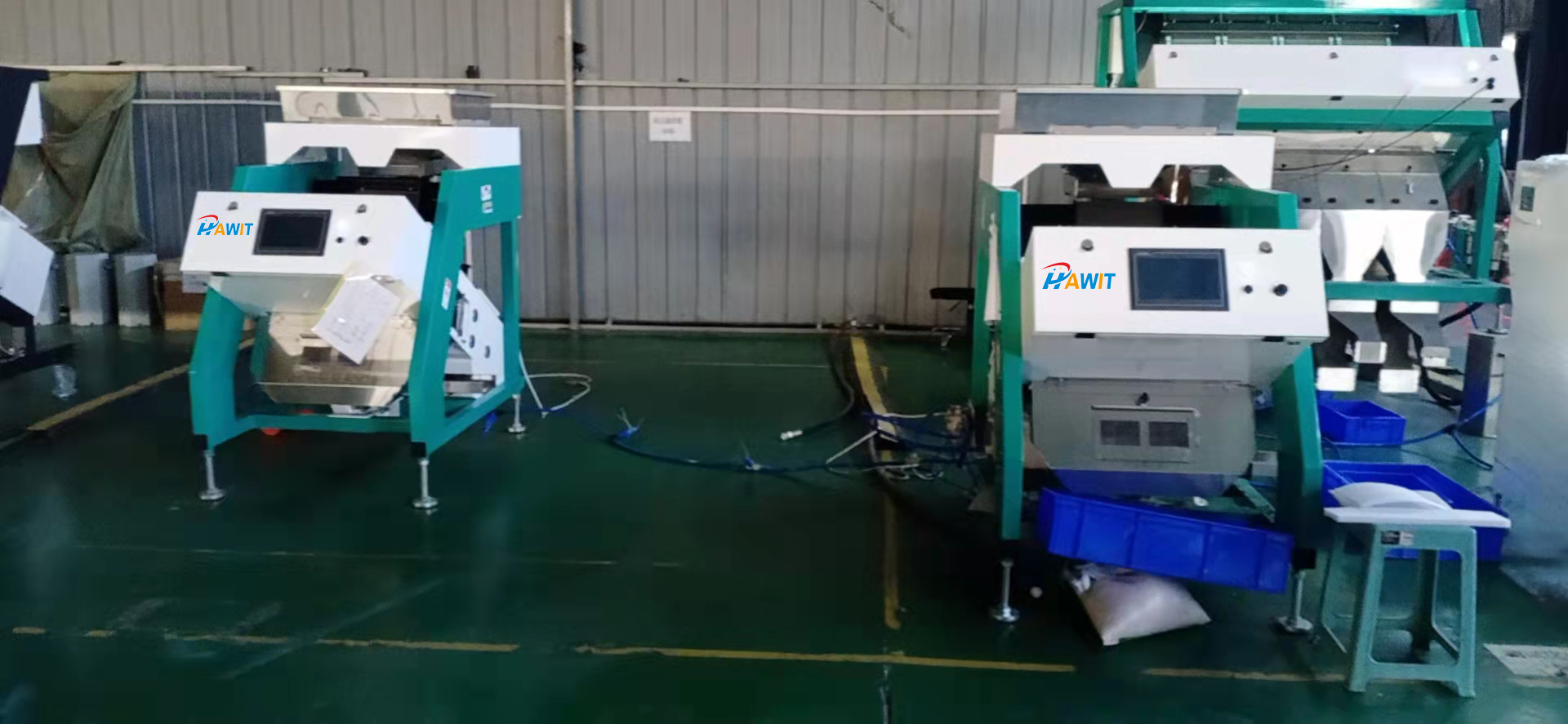

64 chennals
